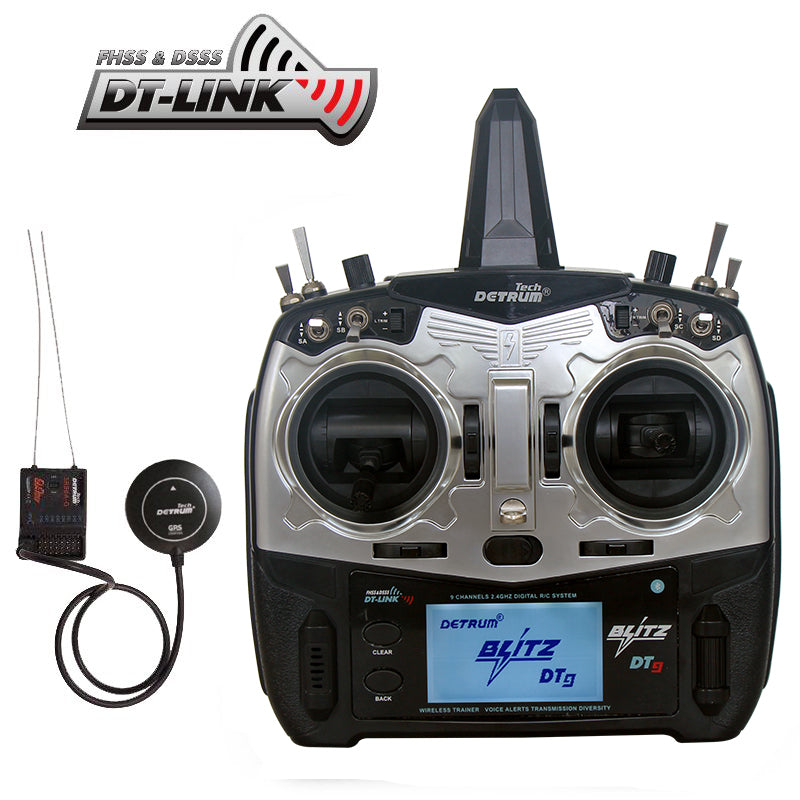

Detrum Blitz-DT9 9CH Smart Programming/Telemetry Transmitter Set Black (TX+SR86A-G)

DetrumSKU: DTM-T018B-1

Version: Mode 1 - Right Throttle
Price:
Sale price$199.00 USD
Stock:
In stock

Description

Detrum Blitz-DT9 9CH Smart Programming/Telemetry Transmitter Set Black (TX+SR86A-G)

Simple and Powerful, Detrum Blitz DT9 (Black) is a 2.4GHz 9-channel smart transmitter with telemetry and programming capabilities. With one transmitter, you can take full control of your flying from all aspects, whether it is ESC settings, gyro receiver programming, BNP with various types of receivers, or wireless training. With full telemetry function, the blitz Dt9 can receive temperature, altitude, GPS, voltage, current, and telemetry data to keep you more connected to your flying than ever. The blitz DT9 works with all Detrum stabilizer receivers and backs the telemetry data. Experience the latest Detrum Blitz!

The Detrum SR86A-G GPS Autopilot Telemetry Receiver is a high-quality device that provides accurate and reliable data for your RC plane. With its advanced GPS, you can track your plane's location and altitude in real-time, allowing you to make precise adjustments to its flight path. The telemetry receiver also features an autopilot function that can assist you in flying your plane, making it a great tool for beginners and experienced pilots.

Blitz-DT9 Online Firmware Upgrade to May 29th, 2024 Version 1.0.7

  • Dual Antenna Diversity
    Vertical antenna on top and horizontal antenna inside the handle ensure multi-angle and omnidirectional signal coverage. This design minimizes signal blind spots and reduces the risk of control loss, enhancing flight safety.
  • SR86A-G Telemetry Receiver
    It provides real-time flight information and supports GPS for one-button return and automatic return on signal loss.
  • Innovative ESC Programming Design
    The BLITZ-DT9 transmitter allows you to program the ESC and stabilized receiver online, making setup simple and intuitive without the need for an additional programming card.
  • Friendly Human-machine Interaction
    BLITZ-DT9 offers menu broadcasting and programmable voice alerts for telemetry data. With alarms, you'll stay focused on flying as the synthesized voice broadcasts through the built-in speaker or audio interface, perfect for noisy environments. Vibration alerts are also available for alarm conditions.
  • Opitimizing Intelligent Flight with Diverse Selection
    This groundbreaking transmitter is compatible with multiple receiver types, enabling Auto Balance Mode, Acro Mode, Altitude Hold Mode, POI (Point of Interest) Mode, Return-to-Home Mode, and more. It effectively addresses aircraft crashes caused by improper transmitter operation.
  • Built-in Wireless Trainer System - 30m
    The BLITZ-DT9 transmitter features a built-in wireless trainer system, allowing instructors to teach flight skills wirelessly up to 30 meters, in addition to using a training cable to connect trainer and student transmitters.
  • Long Standby Time
    Powered by a 7.4V 3000mAh Li-Po battery, it operates for over 15 hours continuously and supports online charging.
  • Real-time Monitoring
    The transmitter can monitor real-time flight data including speed, altitude, position, GPS, battery voltage, and signal strength.
  • Black Box
    Telemetry data is recorded on the SD card, allowing easy access to flight information and convenient maintenance.
  • Straightforward Human-machine Setting Interface
    The setting interface uses characters and drawings, making it more vivid.
  • Bluetooth Interface
    The built-in Bluetooth module allows connection to the Detrum FPV headset and firmware upgrades via the mobile app.
  • Supporting various RC models
    Supporting a variety of RC models including rc airplanes, boats, drones, tanks, and excavators.
  • Retrun Home
    With path control based on auto-recovery mode, the airplane can automatically plan its route and return to the starting point. Height is adjustable during the return flight. You can exit return mode anytime by toggling the return switch. Supports one-button return and signal loss return.
  • Flight Mode
    Five flight modes: Gyro Off, Normal, Aerobatic, Auto-Recovery (Auto Balance), and Return. Switch between modes using the toggle switch.
  • Main Control IC
    32-bit high-performance ARM core processor with 6-axis MEMS gyro chipset.
  • Control Algorithm
    Original aircraft attitude stabilization and control algorithms support various aircraft configurations including normal wing, flying wing, V-tail, and 3D planes.
  • Adjusting the Gain
    Configure the gain and other programmable settings using a compatible transmitter.
  • High Sensitivity
    SR86A utilizes 2.4GHz DSSS and FHSS technologies, ensuring high receiving sensitivity and robust anti-interference capabilities.
  • Unique ID Code
    Once bound, the receiver stores the ID code, eliminating the need for rebinding after restarting.

SR86A-G Quick Start Guide
Read this guide to quickly start using the SR86A-G

1. Installation
Select one of the installation methods based on the aircraft's internal structure. Securely attach inside the fuselage using double-sided tape (fuel aircraft require shock absorption). Connect each channel and the GPS module.


The small triangle icon at the end of the GPS plug corresponds to the lower right corner.

2. Debug
Connect the battery and bind the transmitter to the SR86A-G. Wait for initialization; when the SR86A-G LED begins fast green flashing, the plane should remain stationary. After approximately 2 seconds, the LED will remain solid green. Turn on the Blitz-DT9 and access the Airplane Gyro menu. Configure Item 1 for mode selection, Item 5 for installation direction, and Item 6 for Aircraft Type. Adjust Items 7 and 8 for mode and return switch positions according to personal preference, ensuring no overlap with other switches such as landing gear or flaps.
(GAVIN 8C sets mode switch to AUX2 and return switch to AUX3 in the function menu.)
Switch the mode to Auto-Recovery Mode or normal mode (stabilization). Move the airplane as depicted in the figure. Check if the rudder surface control matches the illustration. If it's opposite, adjust the sensitivity direction in the Airplane Gyro menu accordingly. Once aligned, you're ready to fly.

Hold the plane as shown, simulating a roll motion to observe the aileron action.

Hold the plane as indicated, mimicking a pitching motion to observe the horizontal tail movement.

Hold the plane as demonstrated, simulating a yaw motion to observe the vertical tail movement depicted in the figure.

Note: In normal (stabilized) mode, vertical tail movement is observable, while in Auto-Recovery mode, the airplane exhibits no vertical tail movement.

3. Test flight
Monitor the GPS satellite lock icon in the DT9 monitoring menu. If the icon is unlocked, it indicates the system is searching for positioning. Conversely, if the icon is locked, it signifies that the location is secured to the home point, allowing for safe takeoff at any time.


For the initial test flight, we'll begin in manual mode (gyro off mode). After ascending to a higher altitude, we can transition to normal mode for a brief flight. If all systems perform without issue, we'll then switch to Auto-Recovery Mode for continued flight. It's crucial to observe the aircraft's ability to maintain stable attitude, altitude, and direction during this phase. Once Auto-Recovery Mode proves effective, we can engage the return switch to prompt the aircraft to return home and hover. If there's any perceived sluggishness or excessive flexibility in either Auto-Recovery or return mode, we'll access the sensitivity adjustment menu to fine-tune the settings slightly. Subsequent testing will ensure optimal control of the aircraft by the SR86A-G system.

Features

Nine fully-proportional channels
Model type: airplane, helicopter, multi-rotor, and glider
Frame rate: 2.6ms
Can store up to 250 models
Synthesized voice broadcasting
Vibration alert for alarm conditions and low battery
Trainer system
High resolution 192*96 backlit LCD screen
Dual antenna diversity
Multiple flight mode settings
Telemetry
Four stick modes
Fail-safe
Audio interface
Set the programming parameters of ESC online by this transmitter
Set the programming parameters of stabilized receiver online by this transmitter
SD card support for backing up files, firmware updates, and import/export model data
3-position switches: 6
2-position switches: 1
Momentary switches: 1
Knobs: 2
Thumbwheels: 2
Digital trims: 6
Roll the scroll wheel to move through the screen content or change programming values. Press the scroll wheel to make a selection.
End point adjustment
Sub Trim adjustment
Channel monitoring
Programmable mixes
7.4V 3000mAh Li-Po rechargeable batteryŸ
Charge online
Superior ergonomics that fit the way you fly
The stick lever tension can be adjusted
4096 high-section precision sticks
Two timers


Airplane

Servo delay
Throttle hold
Programmable mixings
Throttle to Balance mixing
Veer to Elevator mixing
V-tail mixing
Delta mixing
Flaperon mixing
Three tail types: normal, V-tail, and delta
9-point elevator curves
9-point throttle curves
9-point rudder curves
9-point aileron curves


Helicopter

Servo delay
Throttle hold
Swash mixing
9-point elevator curves
9-point throttle curves
9-point rudder curves
9-point aileron curves

Specifications

Blitz-DT9 9CH TX

Number of Channels: 9
Modulation / Protocol: DSSS&FHSS
Band: 2.4GHz
Frame Rate: 2.6ms
Telemetry: Yes
Voice Alerts: Yes
SD Card Support: Yes
Upgradeable Firmware: Yes
Trainer System: Yes (both wired and wireless)
ESC Parameter Setting Support: Yes
Stabilized Receiver Setting Support: Yes
Black Box: Yes
Built-in Charging Module: Yes
Battery: 7.4V 3000mAh Li-Po (included)
Charging Voltage: DC 12V/1.5A
Consuming Current < 300mA
Size: 204×246×122mm
Net Weight: 693g (without battery) /834g (with battery)

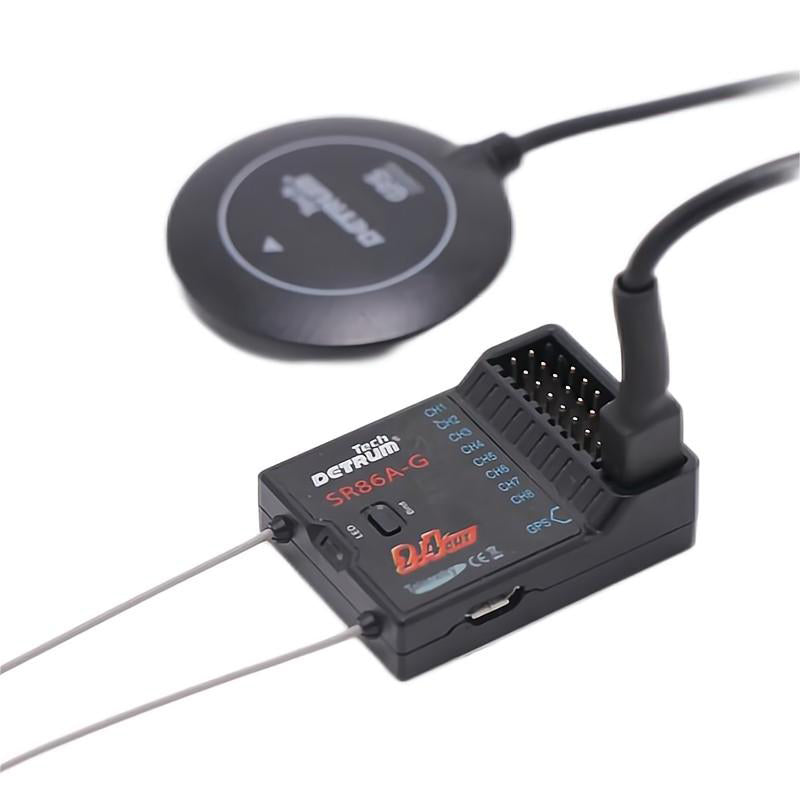

SR86A-G GPS Autopilot Telemetry Receiver

Channels: 8-channel
Sensor: 6-axis gyro, Barometric Pressure, GPS
Sensitivity: -97dBm
Output: PWM (71Hz)
Transmission Range: More than 1,000 meters on the ground, more than 1,600 meters in the air
Input Voltage: 3.6V ~ 16V
Dimensions (L x W x H): 42.3 x 31 x 13.1mm
Weight: 14g
