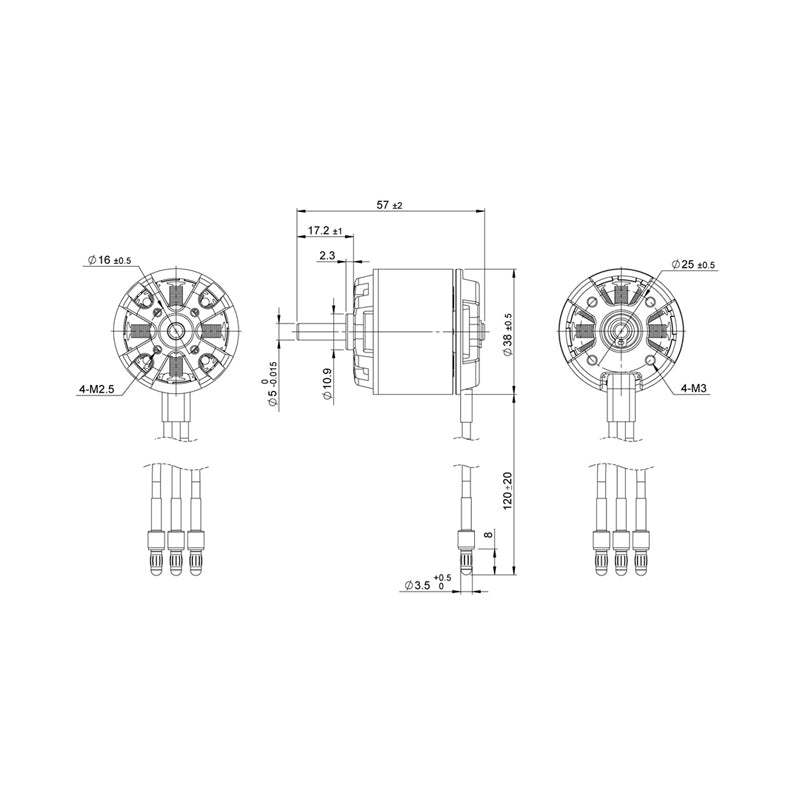

Detrum BM3720A-500KV Brushless Motor Drawing

Roll over image to zoom in Click on image to zoom

Detrum BM3720A-500KV Brushless Motor

Name: Detrum BM3720A-500KV Brushless Motor
Brand: Detrum
SKU: BM3720A-KV500
Price: 40.99 USD
Availability: OutOfStock

DetrumSKU: BM3720A-KV500

Price:

$40.99 USD

Stock:

Sold out

Quantity:

Be the first to write a review

Share this product

Detrum BM3720A-500KV Brushless Motor is designed for the following Dynam RC aircraft:

FW-190 - DY8949

BF-109 - DY8951

F4U Corsair - DY8953

P-47D Thunderbolt - DY8956

F6F Hellcat - DY8958

Run this motor on 3-4 cell lipo and match it with an ESC of 40 Amps. The Detrum BM3720A-500KV motor is rated at 580 Watts max, with a suggested amp draw of 35 Amps (49 Amps Burst).

With its powerful 500KV rating, this motor can deliver impressive speeds and torque, making it an ideal choice for various R/C applications. Whether you're building an RC plane or any other remote-controlled vehicle, the Detrum BM3720A-KV500 Brushless Motor will provide the power and performance.

Type: BM3720A-KV500
KV (Rpms/V): 500
No load current: 1.3 A @10V
Resistance: 0.0931 ohms
Watts: up to 580
Continuous Current: 35A
Max Burst Current: 49A,10 seconds
Cells: 3–4S Li-Po
Recommended Props: 9x7.5 to 12x7
Slots,Poles: 12,14
Motor Outer Dia: 38 mm
Shaft Dia: 5.0 mm
Weight: 4.05 oz (115 g)
Brushless ESC: 40A
