Detrum GAVIN-6C 6CH 2.4Ghz Digital Transmitter Set (TX+RXC6)

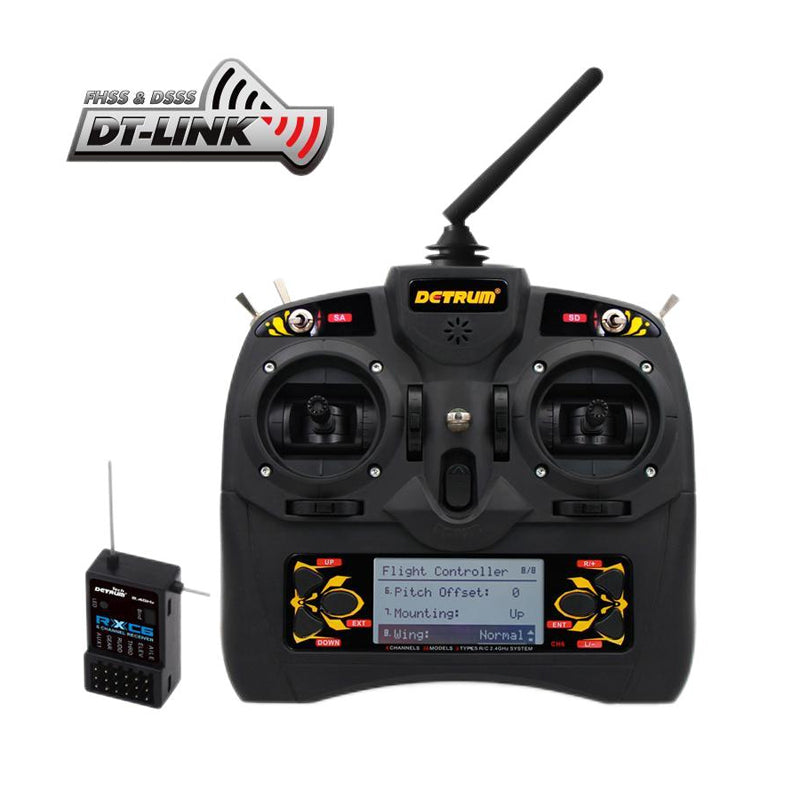

GAVIN-6C transmitter

Applicable for airplanes, helicopters, and multi-copter.
30 model memory.

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequence-hopping spread spectrum (FHSS) technologies, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

Adopting wireless chips with extended power amplifiers (PA) and low noise amplifiers (LNA) can improve the system output power and receiving sensitivity.

The transmitting efficiency is greatly improved by using the all-band antenna on the transmitter.

Can experience a smooth flight operation by using the 4096-section precision sticks and selecting four stick modes.

Low-power devices could reduce transmitting power, leading to low power consumption and longer battery life.

USB upgrade function always keeps your GAVIN-6C in the latest program.

Support Fail Safe function, which could predefine the transmitter's servo position when the receiver is out of control.

The trainer function makes a skilled instructor can teach a student with fly skills.

It can be used to set the programmable item of the flight controller for the airplane.

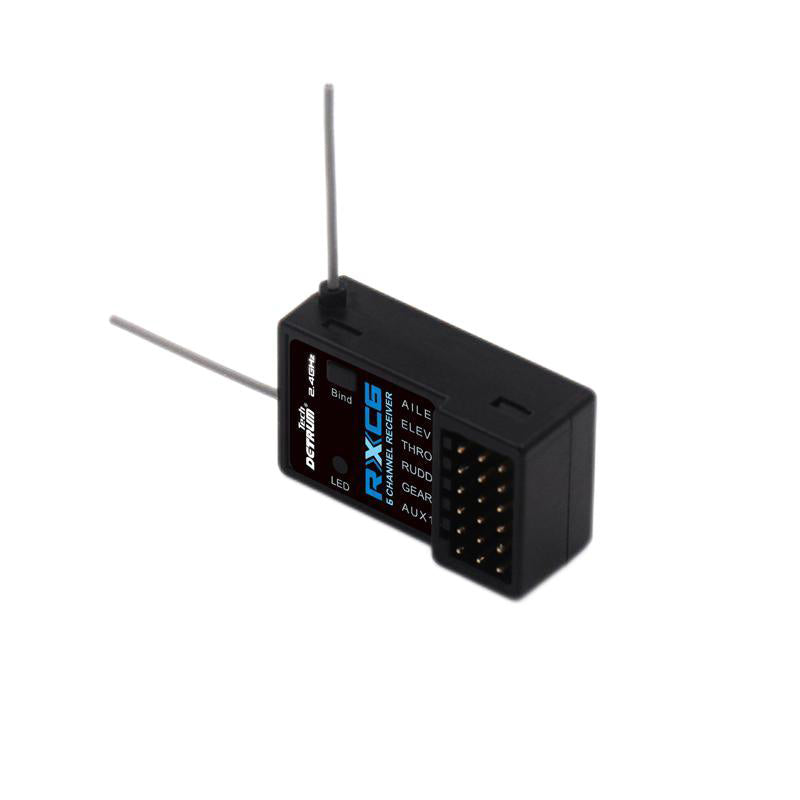

RXC6 mini receiver

Using an ARM M3 processor provides strong resolution capability.

The size of RXC6 is super small (33*20mm), so it is more suitable for small-scale aircraft which can fly in the park.
Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technologies, the receiver has high sensitivity and strong anti-interference capability and can receive signal stably for more than 1,000 meters in the air.

Using a diversity antenna can automatically switch the signals to ensure the stability of the received signal.

Each transmitter has an individually assigned, unique ID code. Once the binding is made, the ID code is stored in the receiver, and no further binding is necessary after restarting the receiver.

When the aircraft flies out of range, the receiver cannot receive a valid RF signal from the transmitter and will move the servos to a predefined position.

GAVIN-6C Transmitter

Channel: 6-channel
Transmitting frequency: 2.4GHz
Spread spectrum: DSSS&FHSS
Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po
Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode).
Output power: 10mW (test mode); 100mW (Operating mode).
Output pulse: 1000ms~2000ms (neutral 1500ms)


RXC6 mini receiver

Dimension: 20*33*12.5mm
Weight: 6.9g
Frequency: 2.4GHz
Communication distance＞1.1km
Power Supply: 3.6V~16V
Output Signal: PWM


Packing lists

GAVIN-6C transmitter x1
RXC6 mini Receiver x1
Bind Plug x1
Introduction Manual x1
