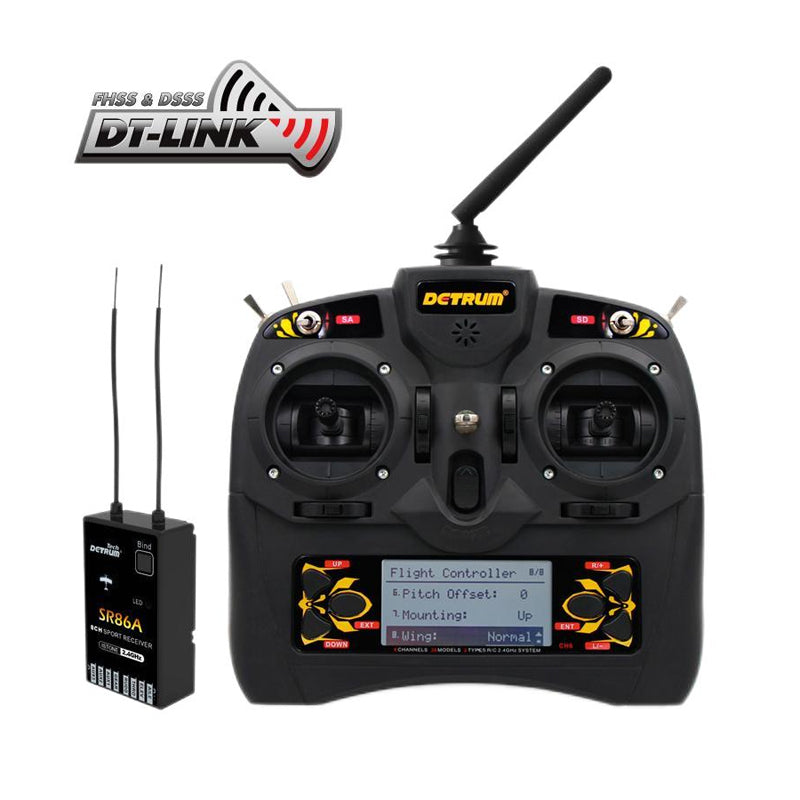

Detrum GAVIN-6C 6CH 2.4Ghz Transmitter with iStone SR86A Stabilizer Receiver

GAVIN-6C transmitter

Applicable for airplanes, helicopters, and multi-copter.
30 model memory.

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequence-hopping spread spectrum (FHSS) technologies, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

Adopting wireless chips with extended power amplifiers (PA) and low noise amplifiers (LNA) can improve the system output power and receiving sensitivity.

The transmitting efficiency is greatly improved by using the all-band antenna on the transmitter.

Can experience a smooth flight operation by using the 4096-section precision sticks and selecting four stick modes.

Using low-power devices could reduce the transmitting power, leading to low power consumption and longer battery life.

USB upgrade function always keeps your GAVIN-6C in the latest program.

Support Fail Safe function, which could predefine the transmitter's servo position when the receiver is out of control.

The trainer function makes a skilled instructor can teach a student with fly skills.

It can be used to set the programmable item of the flight controller for the airplane.

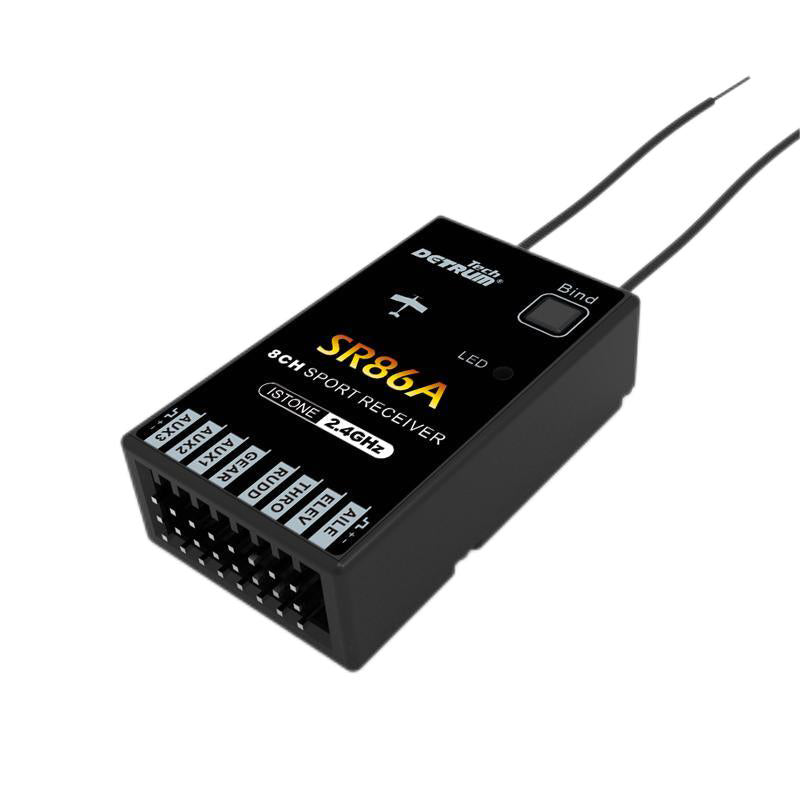

SR86A sport receiver

Adopt a 32-bit high-performance ARM core processor and 6-axis MEMS gyro chipset.

Original airplane attitude stabilization algorithm and control algorithm. Support normal wings, fly wings, V-tail airplanes, and 3D planes.

Support four flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance).

Set the gain and other programmable items with the matched transmitter.

Adopt 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference.

A diversity antenna, combined with the signal detection and switching algorithm, guarantees a stable and reliable receiving signal.

Each ID code of the transmitter can be stored in the receiver, and no further binding after restarting the receiver.

The receiver will move the servos to a predefined position when the aircraft flies out of range and cannot receive a valid RF signal from the transmitter.

GAVIN-6C transmitter

Channel: 6-channel
Transmitting frequency: 2.4GHz
Spread spectrum: DSSS&FHSS
Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po
Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode).
Output power: 10mW (test mode); 100mW (Operating mode).
Output pulse: 1000ms~2000ms (neutral 1500ms)


SR86A sport receiver

Channel: 8-channel
Sensor: 6-axis gyro
Sensitivity: -97dBm
Output: PWM (71Hz)

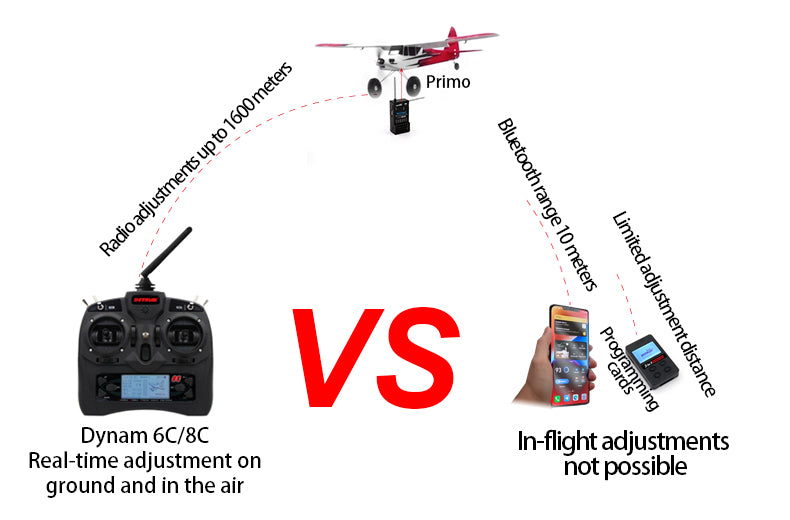

Transmission Range: more than 1km on the ground and more than 1.6km in the air.
Input Voltage: 3.6V~16V
Size: 51mm*28.4mm*14.5mm
Weight: 15g


Packing lists

Detrum GAVIN-6C transmitter x1
Detrum SR86A Sport Receiver x1
Introduction Manual x1
