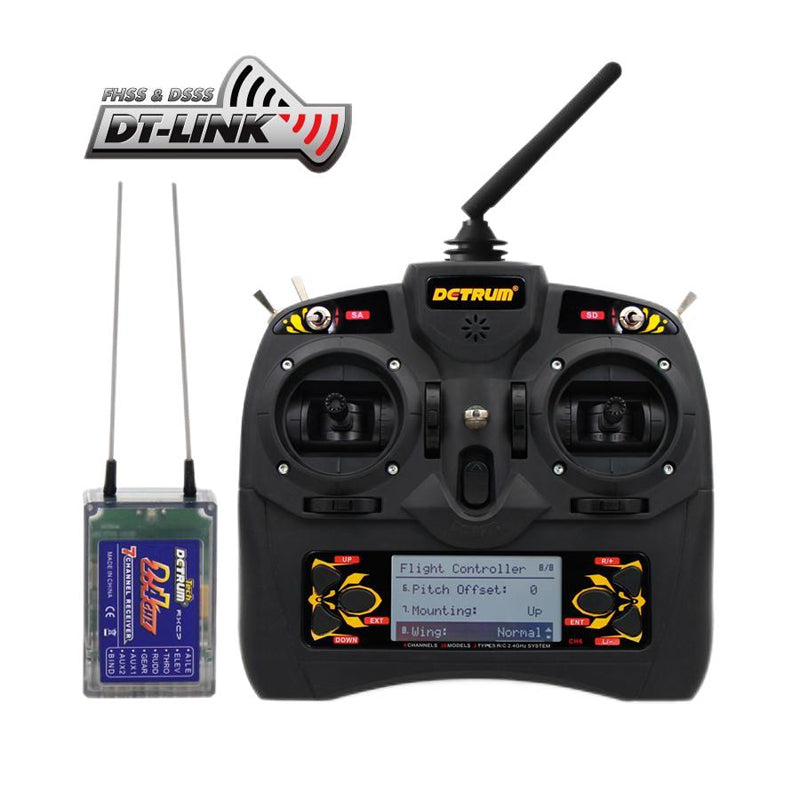

Detrum GAVIN-6C 6CH 2.4Ghz Digital Transmitter with RXC7 Receiver (TX & RXC7)

DetrumSKU: DTM-T001

Version: Mode 1 - Right Throttle
Price:
Sale price$95.99 USD
Stock:
In stock

Description

Detrum GAVIN-6C 6CH 2.4Ghz Digital Transmitter with RXC7 Receiver (TX & RXC7)

Detrum GAVIN-6C is a 2.4GHz 6-channel transmitter applicable for RC airplanes, helicopters, and multi-copter. Using low-power devices leads to longer battery life. Support four stick modes to meet different operating habits. Support Trainer and Fail-Safe functions which provide security for users. GAVIN-6C could provide the USB upgrade function and be used to set the programmable item of the flight controller for airplanes.

Using a diversity antenna, Detrum RXC7 can automatically switch the signal to ensure the stability of the received signal. Adopting the DSSS&FHSS dual spread spectrum technology, the RXC7 receiver will enhance the transmitter by increasing the anti-interference performance and transmission distance. It even can be controlled normally in the city center, do not worry about the strong interference from high voltage lines, signal towers, city WiFi, Etc. The CPU used in the RXC7 receiver offers super resolving power. It has a memory function and can recognize the frequency and ID. It has a fail-safe function.

Features

Applicable for airplanes, helicopters, and multi-copter.
30 model memory.

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequence-hopping spread spectrum (FHSS) technologies, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

Adopting wireless chips with extended power amplifiers (PA) and low noise amplifiers (LNA) can improve the system output power and receiving sensitivity.

The transmitting efficiency is greatly improved by using the all-band antenna on the transmitter.

Can experience a smooth flight operation by using the 4096-section precision sticks and selecting four stick modes.

Low-power devices could reduce transmitting power, leading to low power consumption and longer battery life.

USB upgrade function always keeps your GAVIN-6C in the latest program.

Support Fail Safe function, which could predefine the transmitter's servo position when the receiver is out of control.

The trainer function makes a skilled instructor can teach a student with fly skills.

It can be used to set the programmable item of the flight controller for the airplane.

Specifications

Channel: 6-channel
Transmitting frequency: 2.4GHz
Spread spectrum: DSSS&FHSS
Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po
Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode).
Output power: 10mW (test mode); 100mW (Operating mode).
Output pulse: 1000ms~2000ms (neutral 1500ms)

Packing list

GAVIN-6C transmitter x1
Detrum RXC7 Receiver x1
Bind Plug x1
Introduction Manual x1
