Detrum GAVIN-8C 8 Channel 2.4Ghz Digital Transmitter Set with 8ch Receiver (TX+RXC8)

DetrumSKU: DTM-T007

Version: Mode 1 - Right Throttle
Price:
Sale price$99.00 USD
Stock:
In stock

Description

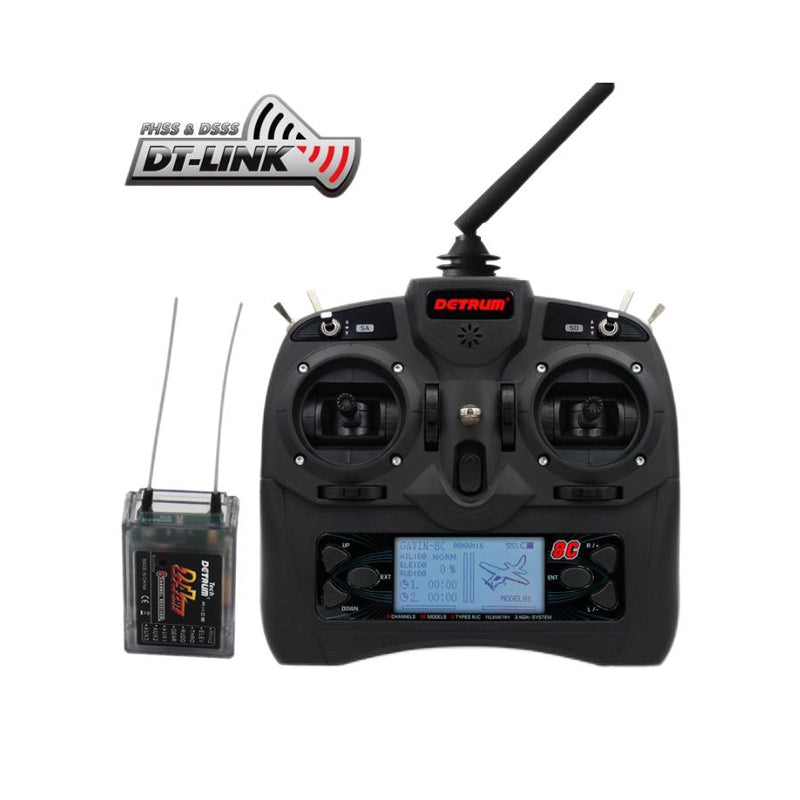

Detrum GAVIN-8C 8CH 2.4Ghz Digital Transmitter Set (TX+RXC8)

Detrum GAVIN-8C is a 2.4GHz 8-channel transmitter applicable to airplanes, helicopters, and multi-copter. Based on the GAVIN-6C, GAVIN-8C adds the two channels, and its response time achieves 2.6ms even with eight channels; it acts synchronously. Also, AA, Ni-MH, and Li-Po batteries can be used in this transmitter to satisfy more customer needs.

The DSSS&FHSS dual spread spectrum technology will enhance the transmitter by increasing the anti-interference performance and transmission distance. It even can be controlled normally in the city center, do not worry about the strong interference from high-voltage lines, signal towers, city WiFi, Etc.

The Detrum RXC8 receiver is compatible with the Detrum GAVIN 8C radios. The RXC8 utilizes a diversity antenna that automatically switches the signal to ensure stability. Adopting a 2.4GHz Direct Sequence Spread Spectrum (DSSS) and multiple frequency-hopping technology, the RXC8 has high sensitivity and strong anti-interference performance.

Features

GAVIN-8C 8CH Transmitter

Applicable for airplanes, helicopters, and multi-copter.
30 model memory.

Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technologies, the R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air.

Adopting wireless chips with extended power amplifiers (PA) and low noise amplifiers (LNA) can improve the system output power and receiving sensitivity.

Using an all-band antenna on the transmitter. The transmitting efficiency is greatly improved.

Can experience a smooth flight operation by using the 4096-section precision sticks and selecting four stick modes.

Achieving 2.6ms response time, even with eight channels, it acts synchronously.

USB upgrade function always keeps your GAVIN-6C in the latest program.

Support Fail Safe function, which could predefine the transmitter's servo position when the receiver is out of control.

The trainer function makes a skilled instructor can teach a student with fly skills.

It can be used to set the programmable item of the flight controller for the airplane.

Customers can use AA, Ni-MH, and Li-Po batteries.

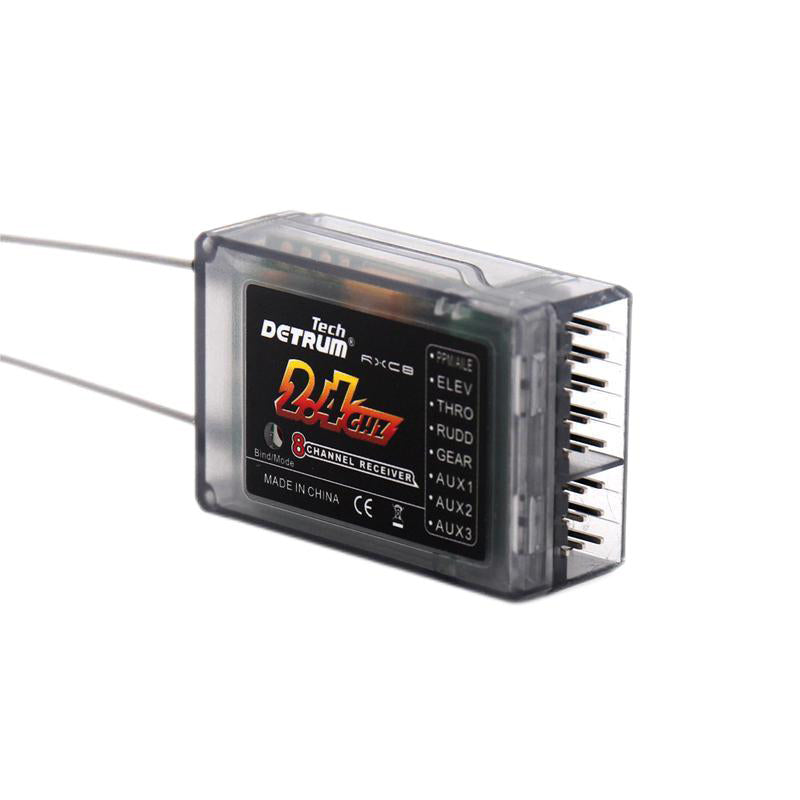

RXC8 Receiver

Diversity antenna with auto-switching technology to ensure maximum signal stability.

2.4GHz Direct Sequence Spread Spectrum (DSSS) technology.

High Sensitivity and Strong Anti-Interference capability.
The onboard CPU offers excellent resolving power and Frequency/ID recognition.

Built-in fail-safe functionality.

Compatibility: Detrum receivers are only compatible with Detrum Gavin radios.

Specifications

GAVIN-8C 8CH Transmitter

Channel: 8-channel
Transmitting frequency: 2.4GHz
Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po
Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (operating mode).
Output power: 10mW (test mode); 100mW (operating mode).
Output pulse: 1000ms~2000ms (neutral 1500ms)

RXC8 Receiver

Number of Channels: 8
Modulation / Protocol: DSSS / FHSS
Band: 2.4GHz
Range: Full
Telemetry: No
Integrated Gyro: No
Voltage Range: 3.6-16V
Antenna: Dual Diversity
Dimensions (L x W x H): 39 x 28.5 x 14.5mm
Weight: 12g
