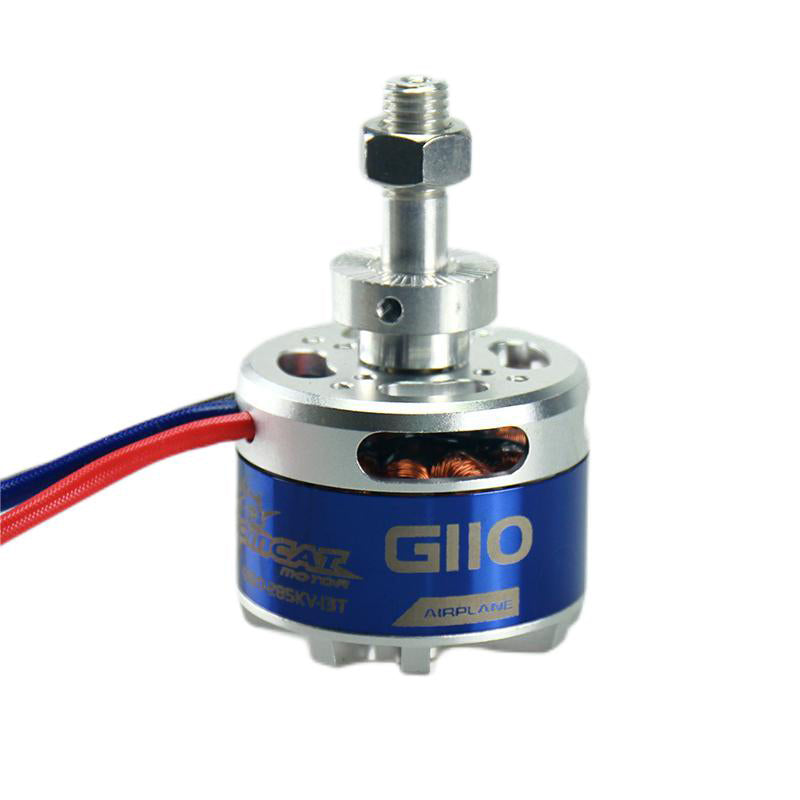

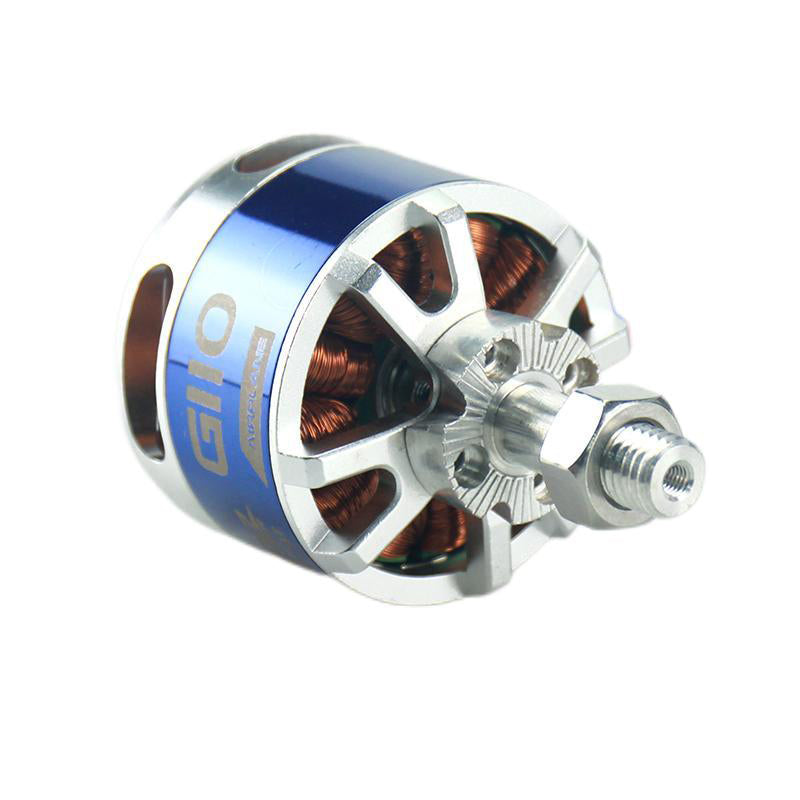

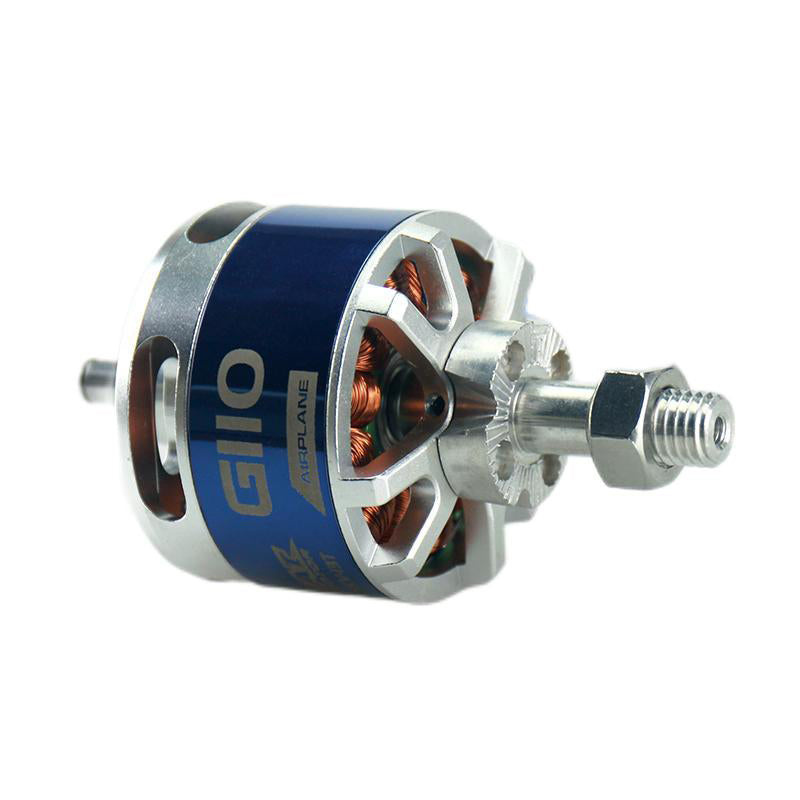

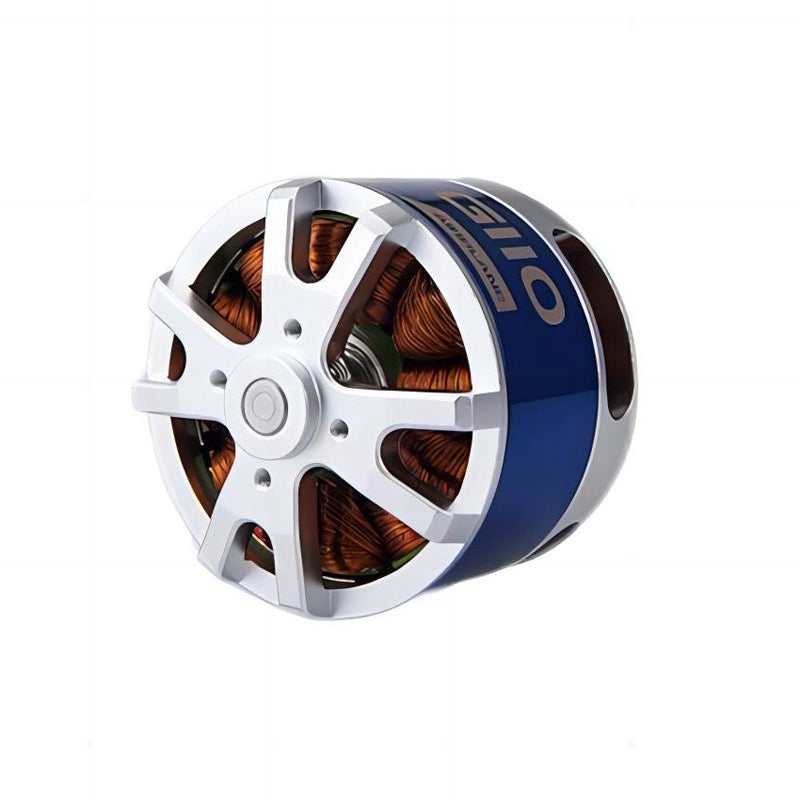

TomCat G110 6320-285KV Outrunner Motor for (110 Glow) Balsa EP Airplane

TomCatSKU: TC-G-6320-KV285

Price:
Sale price$99.00 USD
Stock:
In stock

Description

TomCat G110 6320-285KV Outrunner Brushless Motor for (110 Glow) Balsa EP Airplane

TomCat G110 6320-285KV Outrunner Brushless Motor is designed to power 110-size planes. With its precision-engineered construction and advanced cooling system, the TomCat G110 delivers smooth, efficient power for a wide range of flight maneuvers. Run this motor on 8-9 cell lipo and match it with an ESC of 80 Amp or more. The G110 motor is rated at 2200 Watts, with a suggested max amp draw of 55 Amps (68 Amps Burst).

The TomCat G series Balsa EP Planes brushless motor is designed to deliver outstanding performance and reliability. With advanced features and meticulous engineering, it ensures smooth, high-speed rotation and robust performance over extended periods.

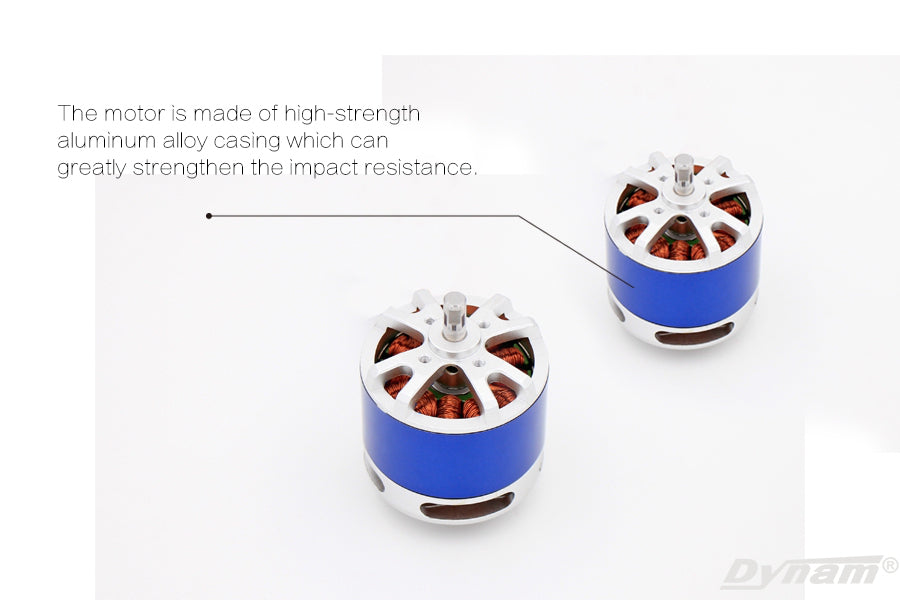

High-Strength Aluminum Alloy Casing:

Constructed from high-strength aluminum alloy.
Greatly enhances impact resistance.

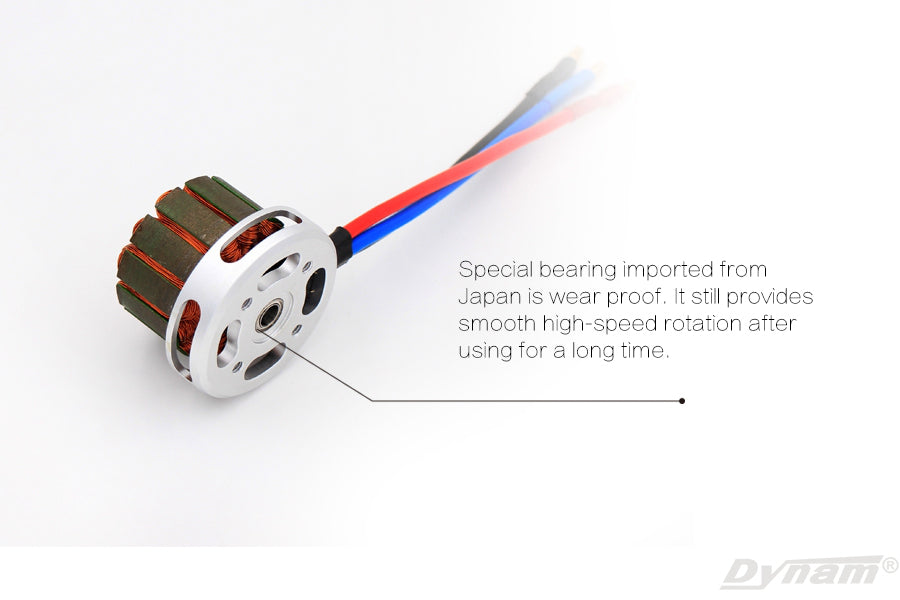

Wear-Proof Bearing:

Provides smooth high-speed rotation.
Ensures long-lasting, high-strength performance with excellent concentricity.

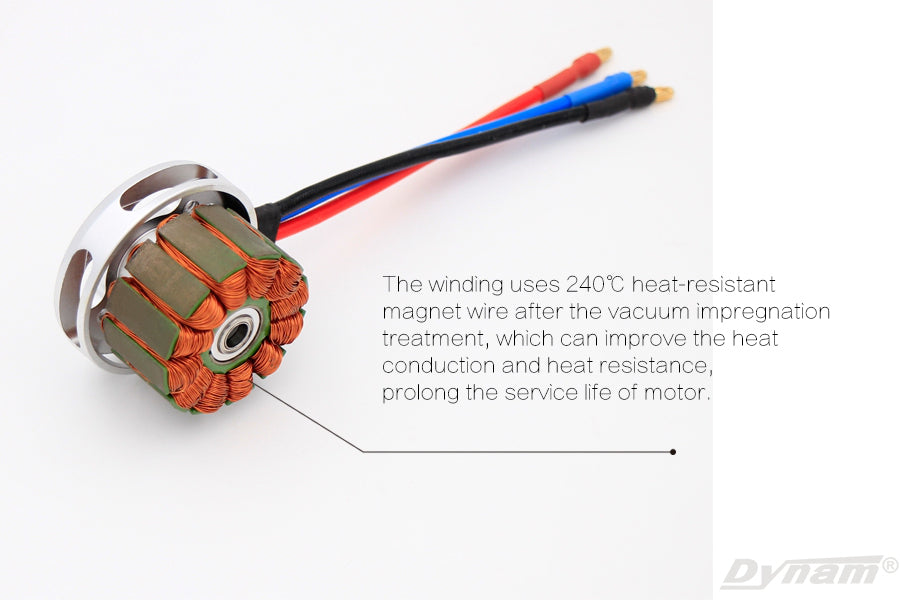

Heat-Resistant Magnet Wire:

Utilizes 240° heat-resistant magnet wire.
Treated with vacuum impregnation to enhance heat conduction and resistance.
Prolongs the motor's service life.

High Conductivity Silicon Steel Sheets:

Made in Japan.
Offers superior magnetic conductivity, enhancing motor efficiency.

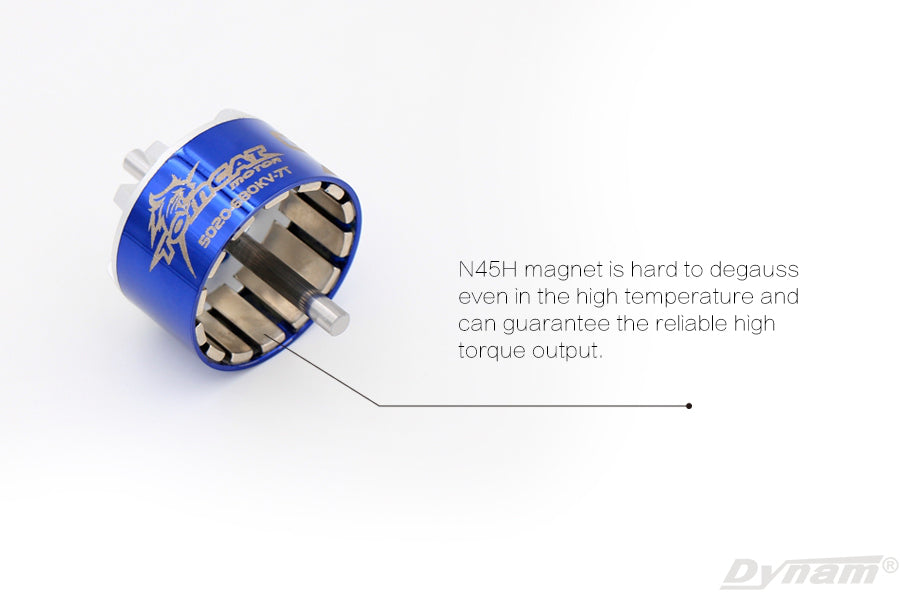

N45H Magnets:

Resistant to demagnetization even at high temperatures.
Ensures reliable high torque output under extreme conditions.

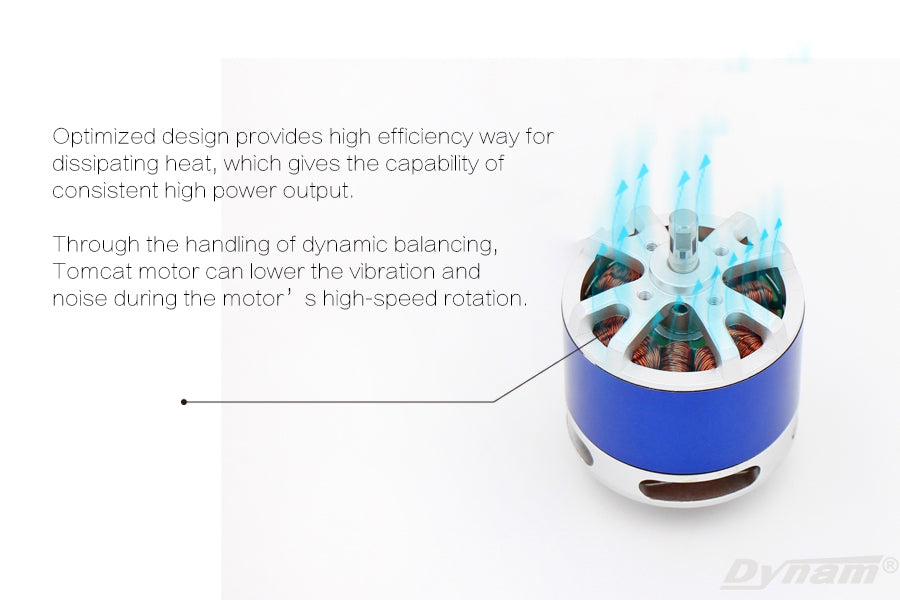

Optimized Heat Dissipation:

Innovative design facilitates efficient heat dissipation.
Enables consistent high power output and reliable performance.

Dynamic Balancing:

Rigorous dynamic balancing tests reduce vibration and noise.
Ensures quiet and stable high-speed operation.

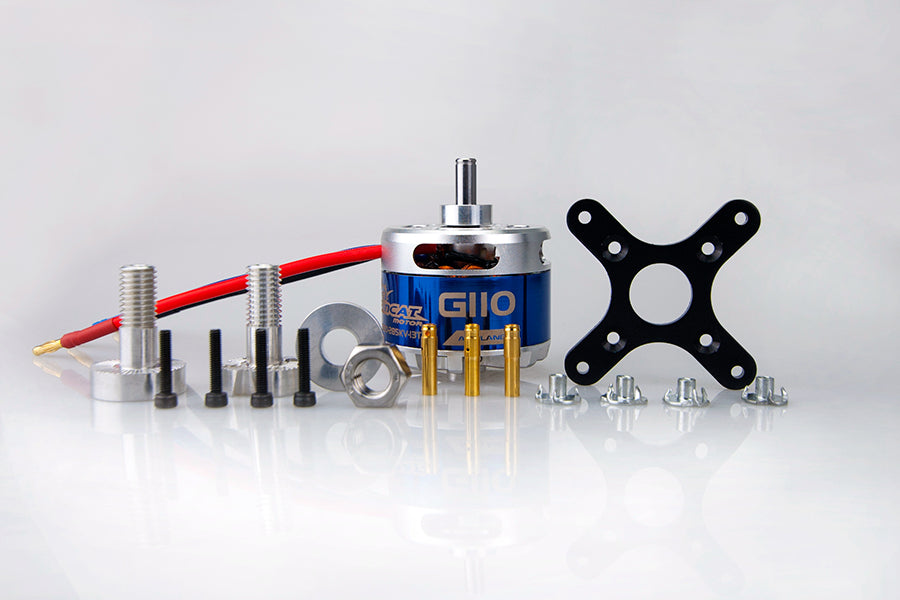

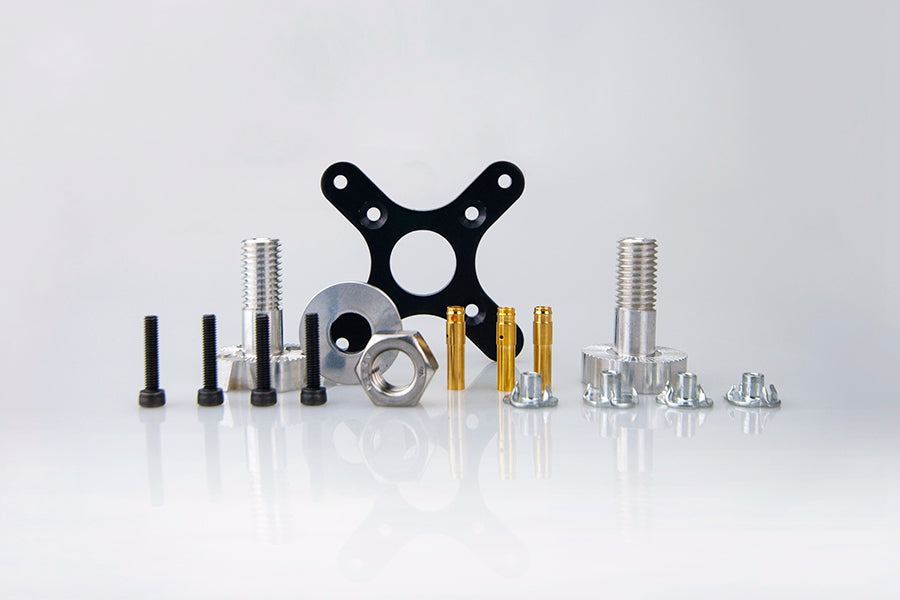

Versatile Accessories:

Includes a 75cm extension cord in addition to the 10cm assembled wire for flexible motor connections.
Rich set of accessories meets various installation needs.
Guarantees high-quality and high-performance operation.

Enhanced Compatibility:

When paired with Skylord series ESC, the TomCat brushless motor excels in Balso EP airplanes.
Delivers excellent performance and an exceptional flying experience.

Experience the cutting-edge engineering of the TomCat motor, where precision, power, and performance converge to exceed your expectations.

TomCat Motor G Series Substitute for Glow/Gas Engine

TomCat Motor G Series for Airplanes

Specifications

Type: TC-G-6320-KV285 (G110)
KV(rpms per volt): 285
No load current: 1.7 A @10V
Resistance: 0.035 ohms
Watts: up to 2200
Continuous Current: 55A
Max Burst Current: 68A,10seconds
Cells: 8–9 S Li-Po (G110 6320-285KV-13T 8-9 Cell Lipo)
Recommended Props: 17x8 to 19x10
Slots,Poles: 12,14

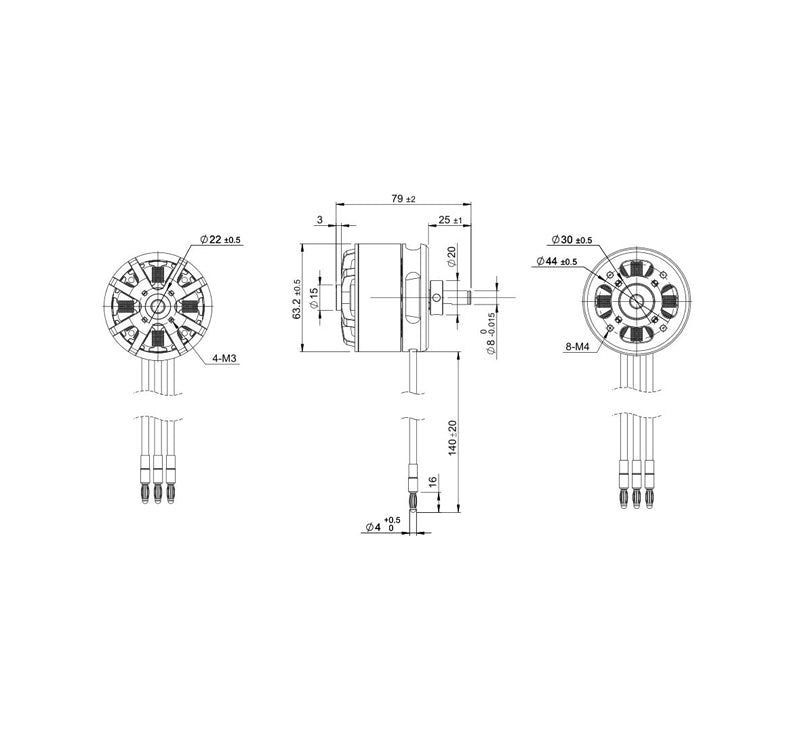

Motor Outer Dia: 63.2 mm
Shaft Dia: 8.0 mm
Weight: 18.34 oz (520g)
Brushless ESC: 70A
