TomCat G52 5025-590KV Outrunner Motor for (52 Glow) Balsa EP Airplane

TomCatSKU: TC-G-5025-KV590

Sale price$65.99 USD
In stock

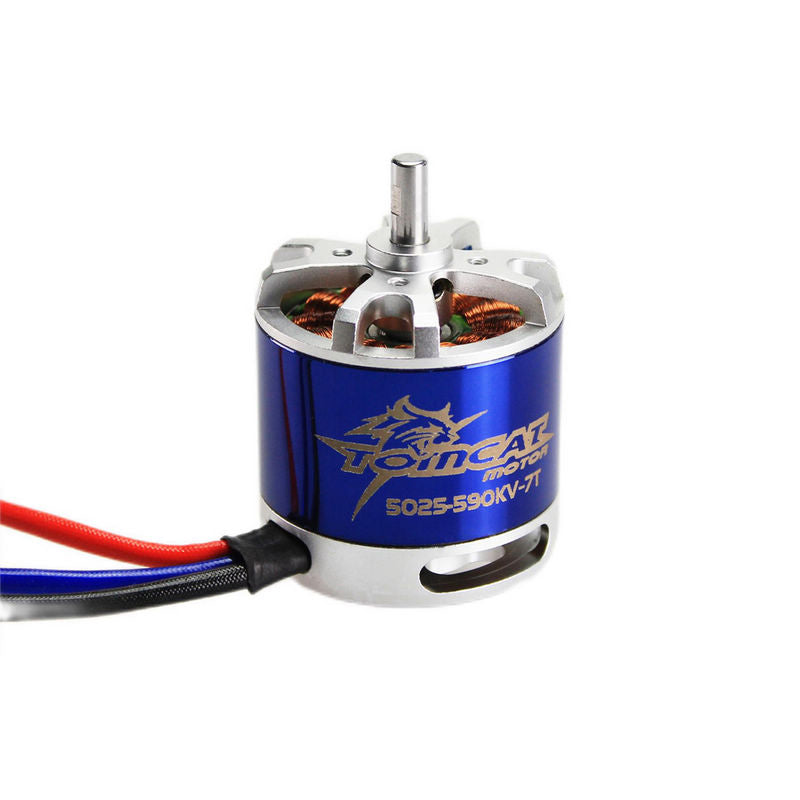

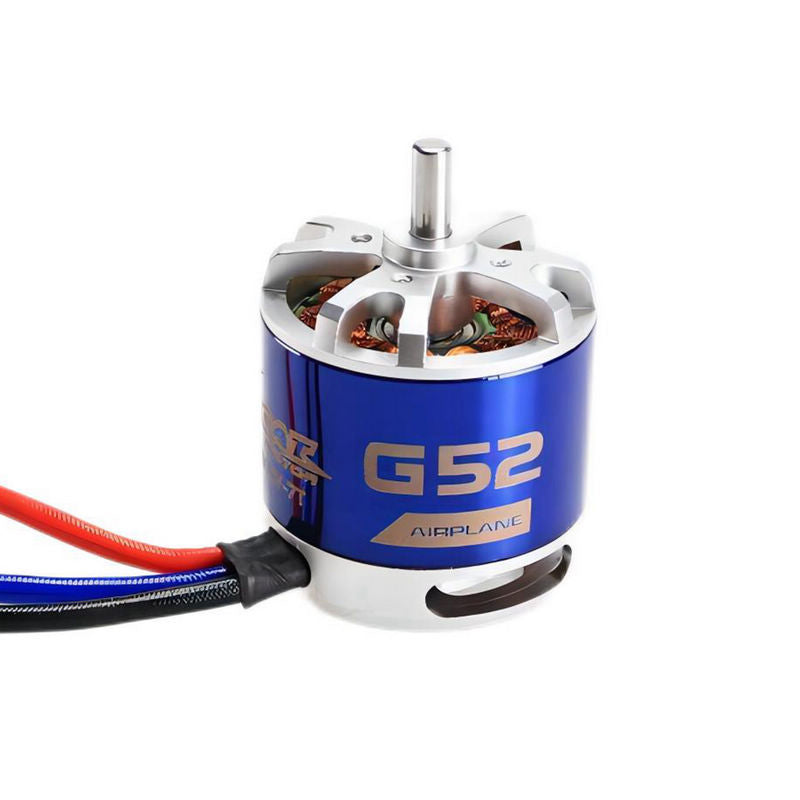

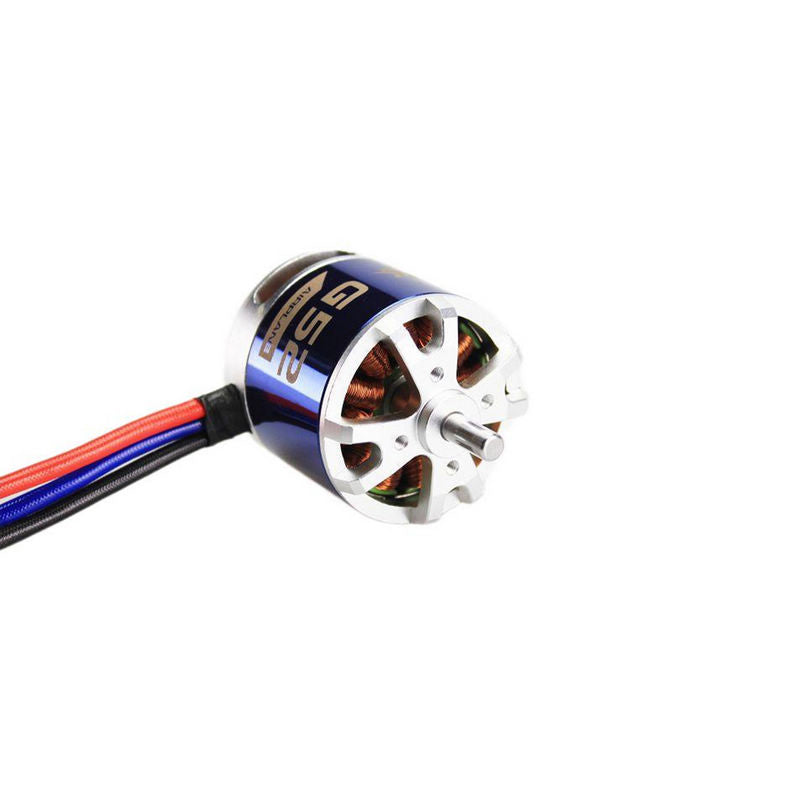

TomCat G52 5025-590KV Outrunner Brushless Motor for (52 Glow) Balsa EP Airplane

TomCat G52 5025-590KV Outrunner Brushless Motor is a comparable replacement for a 52 glow. With its lightweight design, it is easy to install and can be used with a variety of different RC vehicles. Run this motor on 4-6 cell lipo and match it with an ESC of 70-80 Amps. The G52 Motor is rated at 1600 Watts max, with a suggested max amp draw of 62 Amps (70 Amps Burst).

The TomCat G series Balsa EP Planes brushless motor is designed to deliver outstanding performance and reliability. With advanced features and meticulous engineering, it ensures smooth, high-speed rotation and robust performance over extended periods.

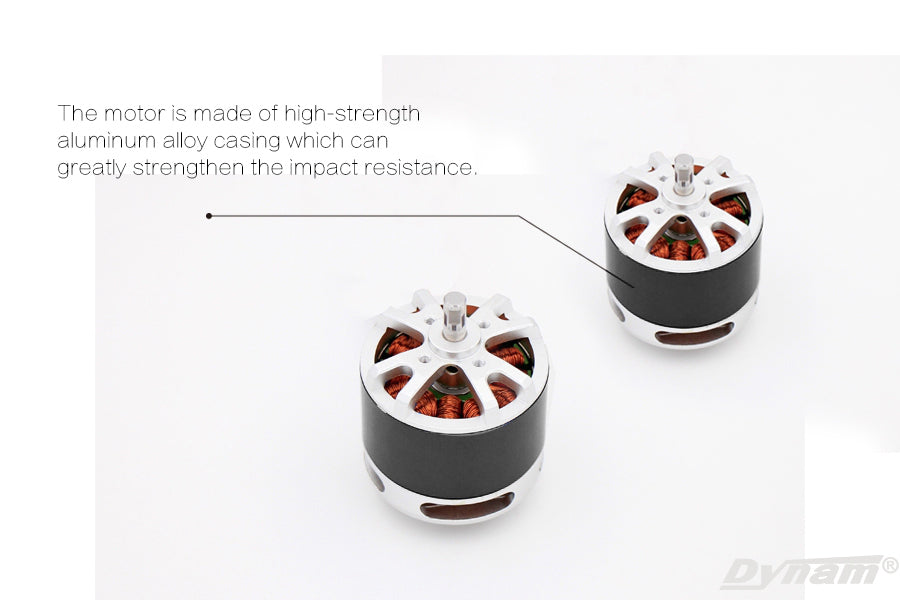

High-Strength Aluminum Alloy Casing:

Constructed from high-strength aluminum alloy.
Greatly enhances impact resistance.

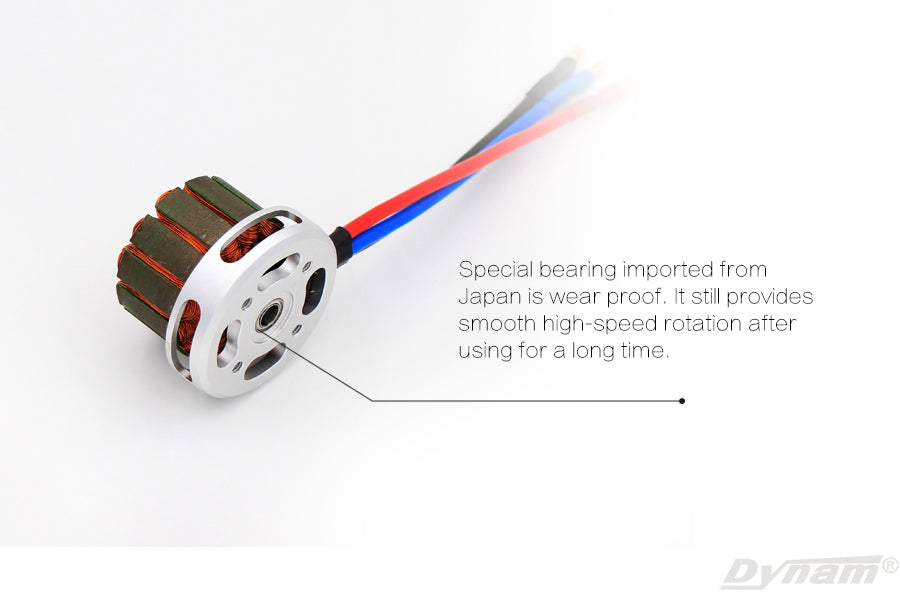

Wear-Proof Bearing:

Provides smooth high-speed rotation.
Ensures long-lasting, high-strength performance with excellent concentricity.

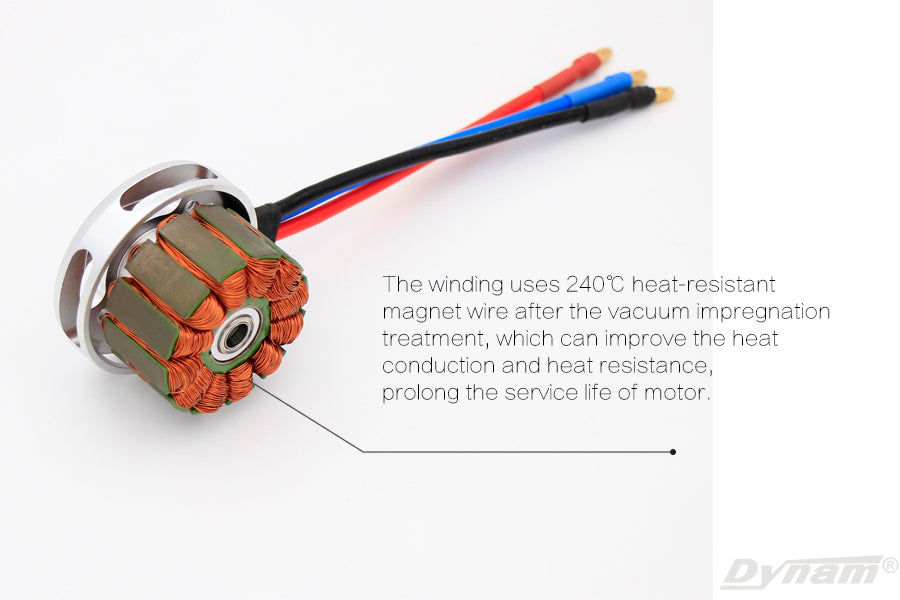

Heat-Resistant Magnet Wire:

Utilizes 240° heat-resistant magnet wire.
Treated with vacuum impregnation to enhance heat conduction and resistance.
Prolongs the motor's service life.

High Conductivity Silicon Steel Sheets:

Made in Japan.
Offers superior magnetic conductivity, enhancing motor efficiency.

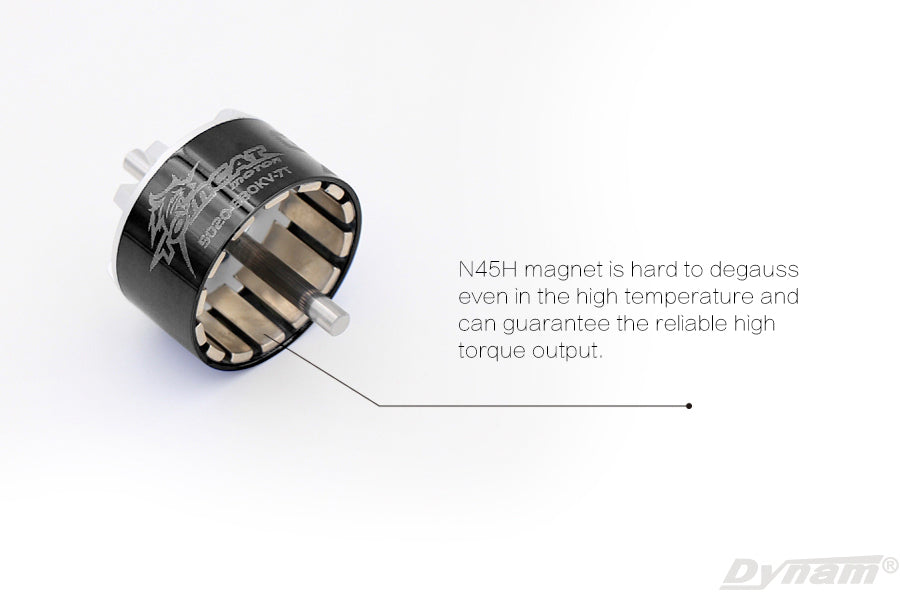

N45H Magnets:

Resistant to demagnetization even at high temperatures.
Ensures reliable high torque output under extreme conditions.

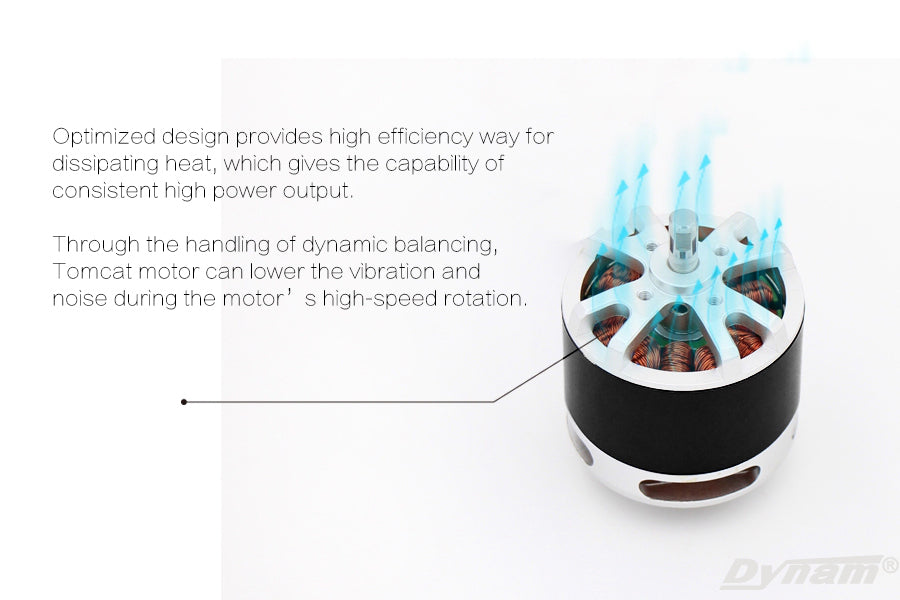

Optimized Heat Dissipation:

Innovative design facilitates efficient heat dissipation.
Enables consistent high power output and reliable performance.

Dynamic Balancing:

Rigorous dynamic balancing tests reduce vibration and noise.
Ensures quiet and stable high-speed operation.

Versatile Accessories:

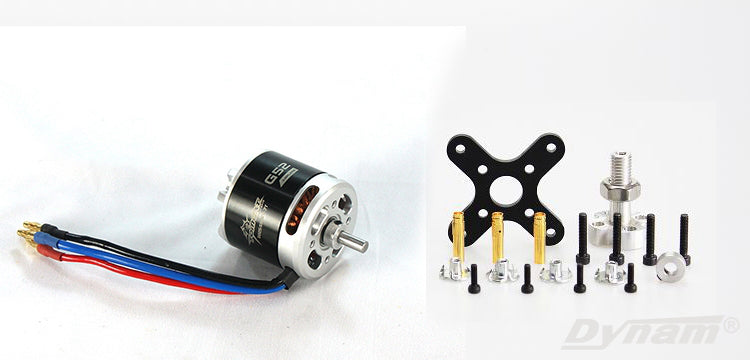

Includes a 75cm extension cord in addition to the 10cm assembled wire for flexible motor connections.
Rich set of accessories meets various installation needs.
Guarantees high-quality and high-performance operation.

Enhanced Compatibility:

When paired with Skylord series ESC, the TomCat brushless motor excels in Balso EP airplanes.
Delivers excellent performance and an exceptional flying experience.

Experience the cutting-edge engineering of the TomCat motor, where precision, power, and performance converge to exceed your expectations.

TomCat Motor G Series Substitute for Glow/Gas Engine

TomCat Motor G Series for Airplanes


Type: TC-G-5025-KV590 (G52)
KV(rpms per volt): 590
No load current: 2.6 A @10V
Resistance: 0.019 ohms
Watts: up to 1600
Continuous Current: 62A
Max Burst Current: 70A,10seconds
Cells: 4–6 S Li-Po (G52 5025-590KV 4-6 Cell Lipo)
Recommended Props: 12x8 to 14x7
Slots,Poles: 12,14

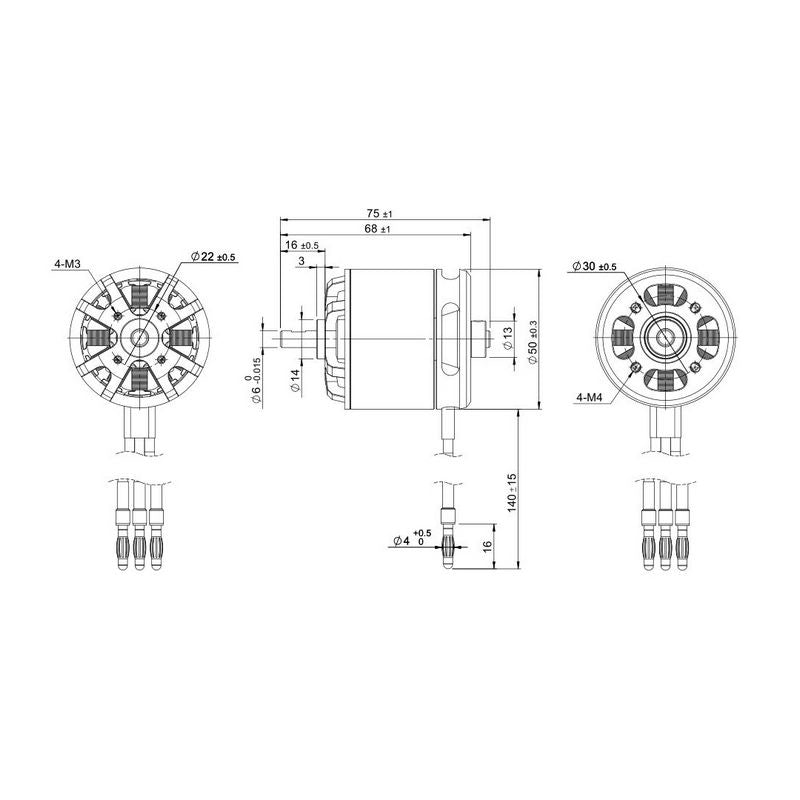

Motor Outer Dia: 50 mm
Shaft Dia: 6.0 mm
Weight: 12.5 oz (355g)
Brushless ESC: 80A
