TomCat Skylord Advance 120A Speed Controller ESC 5-8V/10A BEC

TomCat Skylord Advanced 120A is an electronic speed controller (ESC) for controlling the motor speed and is applicable for 500~550 class helicopters (propeller: 470~575mm) and large duct airplanes. This ESC, whose continuous current is 120A, supports multiple flight modes, including Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), and Helicopter (Store Governor). It also supports multiple protections and can be adjusted parameters by a 3-in-1 program card, which is convenient for the user.

Systematic Design in Heat Dissipation

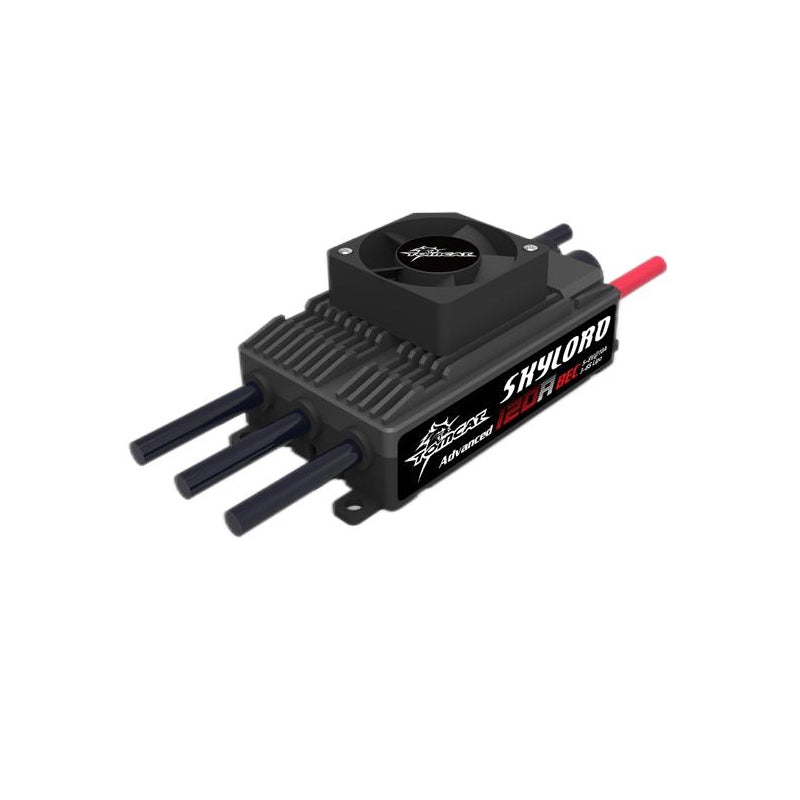

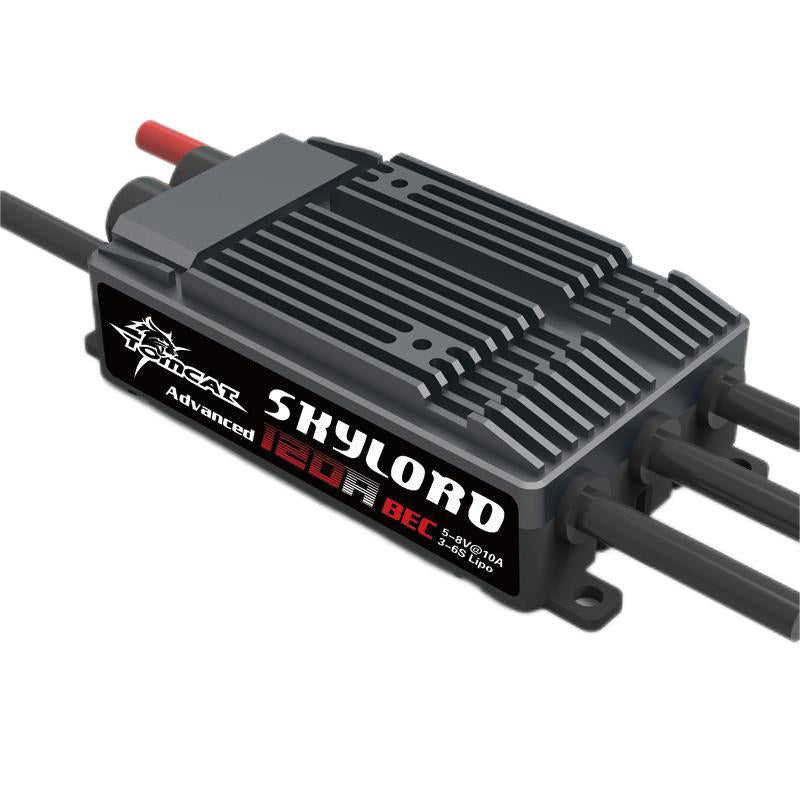

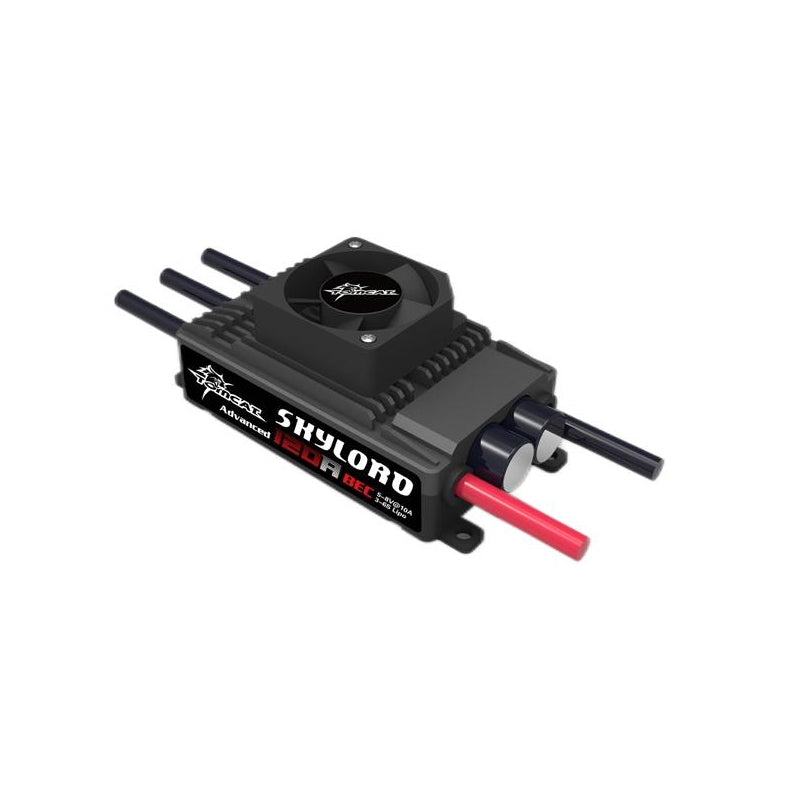

The top of the ESC has a special casing with a slot for conducting heat, which could enlarge the radiating area. Two fixing holes for the fan, the user could install the fan or not according to their own needs.

Internal silicone pad for conducting heat clings to the MOS power elements, which could dissipate the heat to the maximum. As for the bottom of the ESC casing, multiple ventilation holes are designed for better usage.

Multiple programmable items and adjustable sensitivity of speed governing make the flight as you wish

In a separate programming port for ESC programming or parameter setting, the user could check the minimum voltage, max temperature, and max current, then program the ESC. As for the motor speed governing, the user could adjust the governor parameters to achieve precise control and perfect flight to one's own needs.

Independent high voltage BEC

New switch-mode independent BEC with adjustable output voltage ranges from 5V to 8V and continuous/peak current of 10A/25A, which could drive the motors to achieve the perfect flight. Independent BEC module design will keep the normal output and reduce the risks of crash when the MOSFET board of the ESC is burnt.

Multiple functions and settings, safer and more reliable

The user could assign the Start-up time of the ESC in StoGov and ElfGov modes to make the motor start extremely smooth and could effectively avoid tail-drift issues. Also, in this mode, the user could program the "AR Time" and "Restart Accel" to break the autorotation and restart up, reducing the possibility of a crash resulting from incorrect operation.

Features

The microprocessor in the ESC is powered by a separate voltage regulator IC with better anti-jamming capability, greatly reducing the possibility of being out of control.

DEO Technology adopted greatly improves throttle response & driving efficiency and reduces ESC temperature.

New switch-mode BEC with adjustable output voltage ranges from 5V to 8V and continuous/peak current of 10A/25A.

BEC is separated from other circuits of the ESC. It will keep its normal output when the MOSFET T board of the ESC is burnt.

Multiple flight modes: Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), and Helicopter (Store Governor) to meet all user needs.

The new governor program with adjustable governor parameter P/I brings an excellent speed-governing effect and guarantees the stability of the propeller's revs when the load changes dramatically.

Data logging records the minimum voltage and maximum temperature of the flight.

"Restart in auto rotation" can manually interrupt the auto rotation and quickly restart the motor to avoid crashes caused by incorrect operations.

Independent output port for RPM (that is, motor speed) signals.

A separate programming port for ESC programming or parameter setting makes it convenient for the user.

Multiple protections like start-up protection, ESC thermal protection, capacitor thermal protection, over-current protection, overload protection, and throttle signal loss protection. It could extend the service life for ESC and free the flight from worries.

Specifications

Model: Skylord Advanced 120A
Application: 500-550 Class Helicopters (Propeller: 470-575mm), large airplane, large duct airplane
Input Voltage: 2S~6S LiPo
Continuous Current: 120A
Peak Current (10s): 150A
BEC Output: Switch-mode, 5~8V Adjustable (Step:0.1V),10A/25A Cont./peak
Throttle Signal/BEC Output/RPM Signal Transmission Wires: Throttle Signal Wire: White
BEC Output Wires: Red & Blackˎ Red & Brown
RPM Signal Transmission Wire: Yellow
Separate Programming Port: For connecting 3-in-1 program card
Weight: 110g
Size: 79*40.5*31.6mm


Packing List

ESC x1
User Manual x1
3-in-1 programming card
